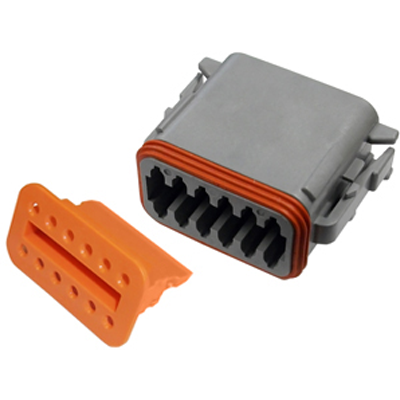

Deutsch DT series connectors offer field proven reliability and rugged quality. The design strengths include multiple pin and socket arrangements and its design flexibility. The DT series offers the harness designer multiple configurations in a simple to use housing and connector series. Wedgelock included.
| AMP | 13A |
| CAVITIES | 12 |
| CONTACT SIZE | 16 |
| DEUTSCH NO. | DT06-12S, W12S |
| GAUGE | 20-14 AWG |
| MATERIAL | THERMOPLASTIC, SILICONE SEAL |
| SERIES | DEUTSCH DT |
| TEMPERATURE RATING °C | -55 TO 125 |
| TEMPERATURE RATING °F | -67 TO 257 |
| USE WITH | OPEN/SOLID BARREL FEMALE CONTACTS |
