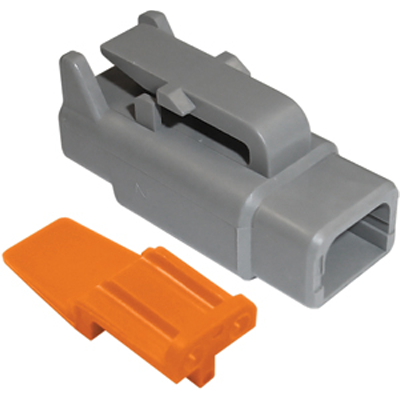

Deutsch DTM series connectors offer the same versatility as the DT series, but for applications where a smaller wire gauge is necessary. Building on the strengths of the DT series the DTM connector line was developed to fill the gap for lower amperage multi-pin connectors. With smaller housings than the DT, or DTP series.
Quantity of 2 per package.
| AMP | 7.5A |
| CAVITIES | 2 |
| CONTACT SIZE | 20 |
| DEUTSCH NO. | DTM06-2S, WM-2S |
| GAUGE | 24-16 AWG |
| MATERIAL | THERMOPLASTIC, SILICONE ELASTOMER SEAL |
| SERIES | DEUTSCH DTM |
| TEMPERATURE RATING °C | -55 TO 125 |
| TEMPERATURE RATING °F | -67 TO 257 |
| USE WITH | OPEN/SOLID BARREL FEMALE CONTACTS |
