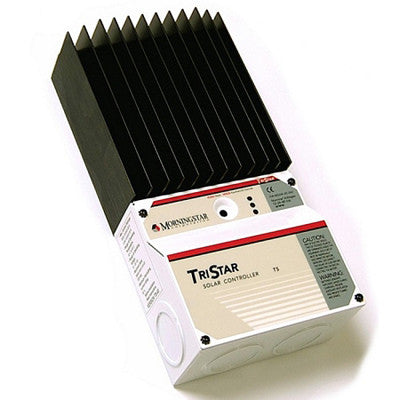

Morningstar TriStar TS-60 12/24/48 60A PWM Solar Charge Controller
Morningstar’s TriStar Controller is a three-function controller that provides reliable solar battery charging, load control or diversion regulation. The controller operates in one of these modes at a time and two or more controllers may be used to provide multiple functions.
The TriStar uses advanced technology and automated production to provide exciting new features at a competitive cost. The optional TriStar meter is the most sophisticated and informative controller meter on the market. The controller is UL listed and is designed for both solar home systems and professional applications.
HIGHEST RELIABILITY
Large heat sink (1) and conservative design enables operating at full ratings to 60°C. No need to de-rate.
MORE POWER
Ratings to 60A at 48VDC will handle solar arrays up to 4kW.
COMMUNICATIONS CAPABILITY
RS-2312 (2) connects to a personal computer for custom settings, data logging and remote monitoring and control.
FULLY ADJUSTABLE
DIP switch (3) provides user with a choice of 7 different digital presets and custom settings via RS-232.
EXTENSIVE ELECTRONIC PROTECTIONS
Fully protected against reverse polarity, short circuit, overcurrent, high temperature and overvoltage.
